Ordering Code:

(1) Type
(2) Dimensions
(3) Inductance
(4) Tolerance (J=°”5%, K=°”10%, M=°”20%)

Application:

  1. Computer products (Hard Disks, Floppy Disks°Ketc.)
  2. Communication products (Cordless Phones°K etc.)
  3. Modems, OA products, TV sets, VCRs°K etc.)
  4. Countermeasures for complying with CE, FCC, VDE or VCCI radiated emissions.

Features:

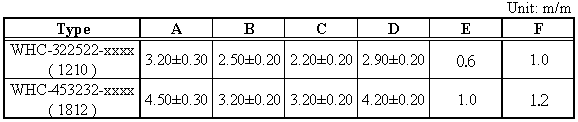

Shape & Dimensions:

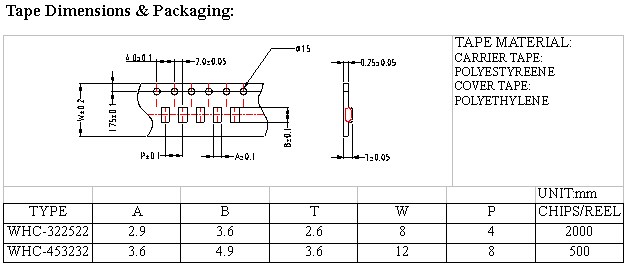

Packaging

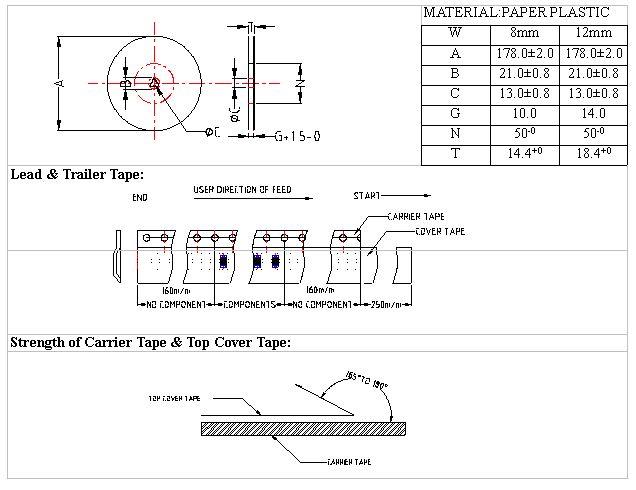

Reel Dimensions:
CARRIER TYPE REELS

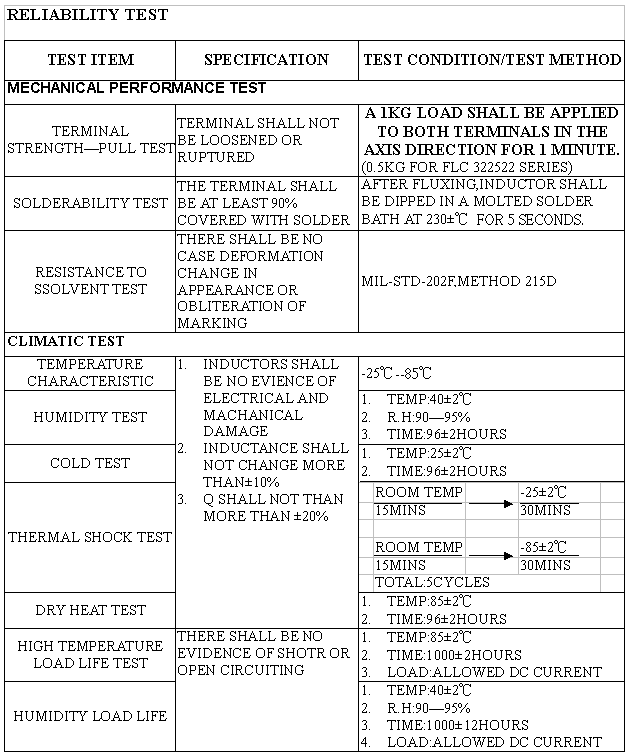

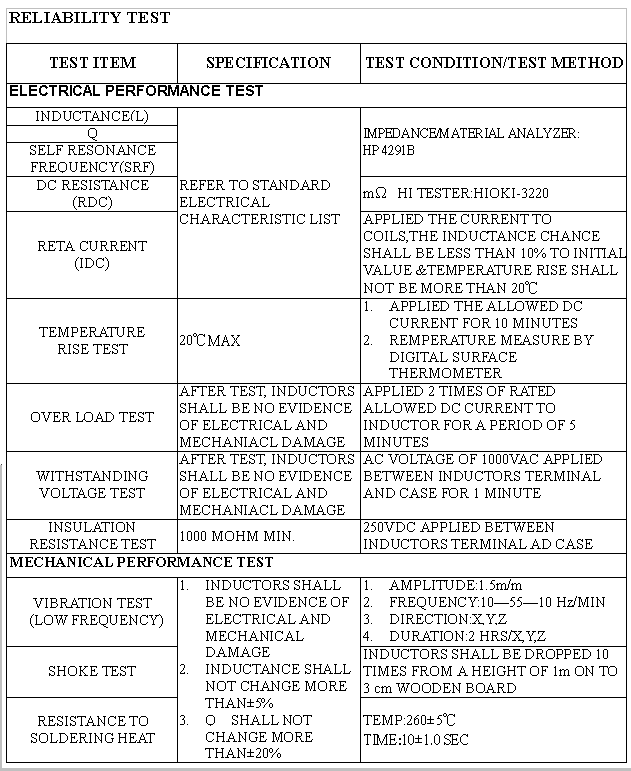

NOTE:
UNLESS OTHERWISE SPECIFIED, ALLOW THE SPECIMEN TO STAND AT ROOM
TEMPERATURE FOR 1 HOUR OR MORE BUT NOT MORE THAN 2 HOURS, MEASURE
THE ELECTRICAL AND MECHANICAL PEFORMANCES
