Contents

Classifications

FAM Type: designed for general-purpose applications with wide range of impedance.
FBM Type: designed for high frequency applications. This type minimizes attenuation of the signal waveform by its sharp impedance characteristics.
FPM Type: designed for high current applications, which is suitable for noise near power lines.
FRM Type: designed for low frequency applications with higher impedance at low frequency.
FLM Type: designed for high current signal lines applications with low DC resistance across a wide range of impedances. The current capacity is between FAM and FPM type.
FHM Type: designed for high-speed applications that used for noise suppression at frequencies higher than the FBM Type.
FBA4 Type: designed for multi-line applications that need high-density packaging of electric circuits.

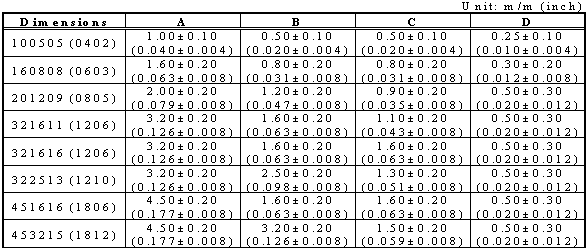

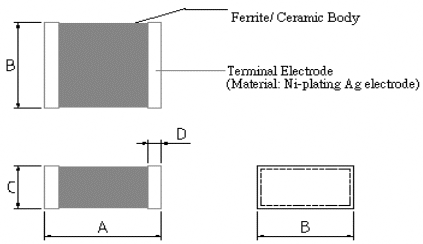

Shape & Dimensions

Chip Beads/ Inductors

Beads Array

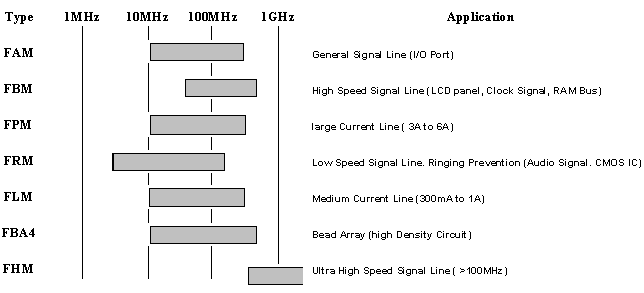

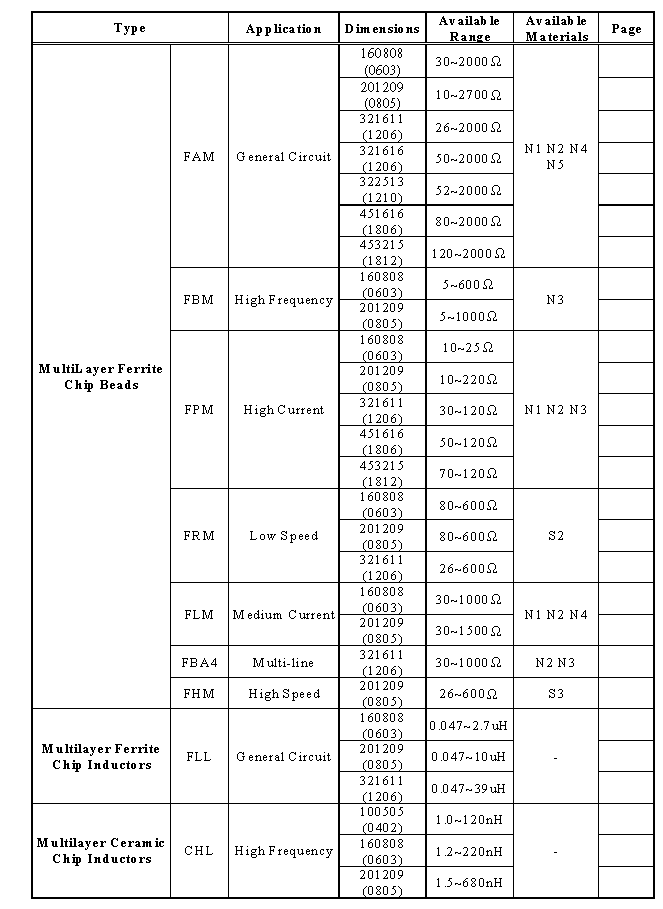

Product Applicable Frequency Overview
